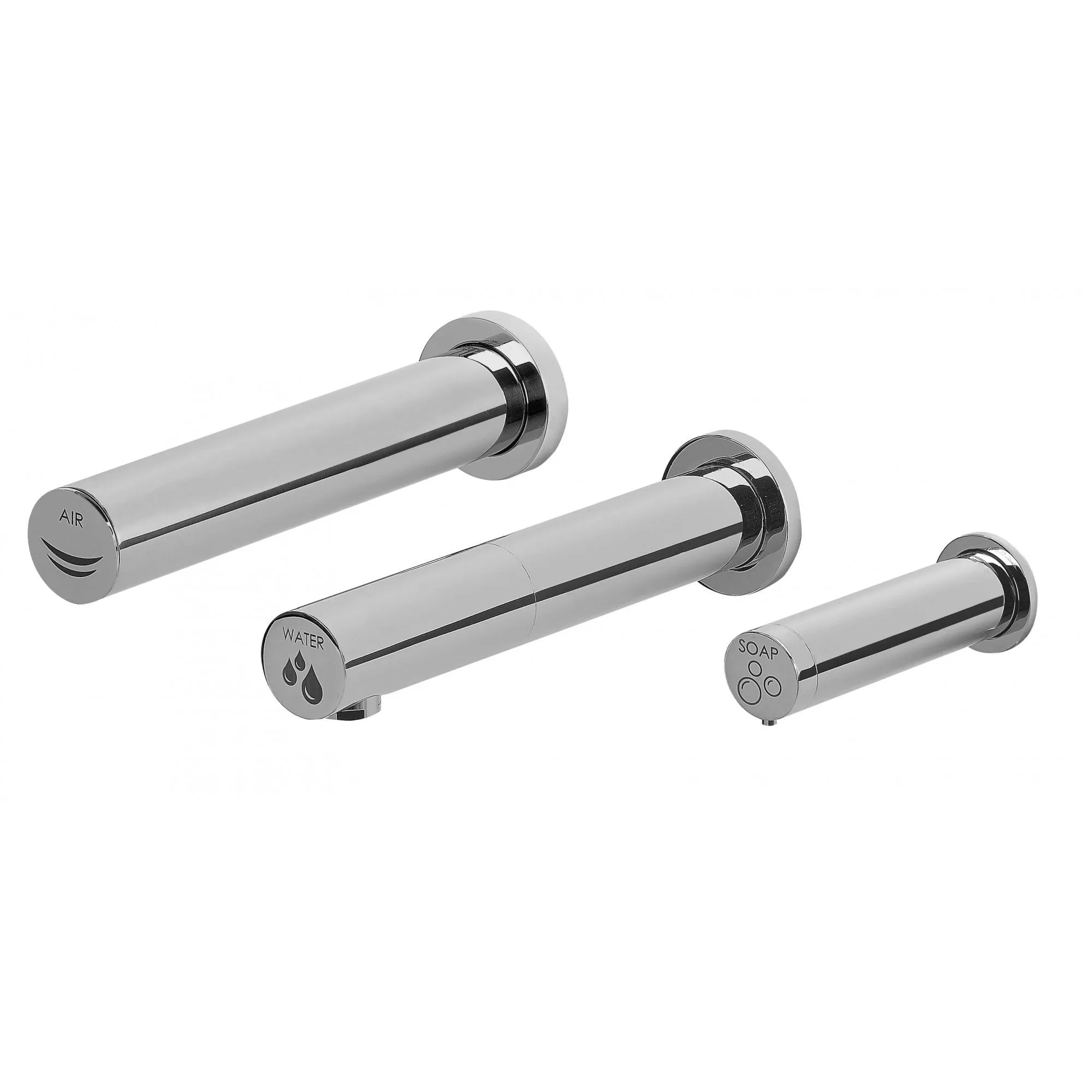

This product can be used as a stand-alone item but also forms part of the Dryflow Tri-Tap series IFSUCM093A-ANON which includes a water tap and soap dispenser. The full set can be purchased in one go by clicking here. There’s also a 2-product series available in this range as a deck mounted option. The Dryflow Tri-Tap Hand Dryer allows an elegant, high speed, energy efficient hand dryer over the sink. There are a number of benefits including all waste water going straight down the drain, space saving and improved time efficiency as everything is available in one place minimising traffic movement. Once the hands have used the Tri-Tap water tap and soap dispenser, this rapid drying hand dryer leaves no user disappointed. The system ensures floors are kept perfectly dry and cleaning requirements are reduced. This overcomes a problem inherent in both paper towels and normal hand dryers. A high-quality, robust product that we would recommend for mid to high traffic areas (300-500 uses per day).
This product is available in a DECK mounted Bi-Tap or WALL mounted Tri-Tap option.
This extremely energy efficient hand dryer can be run at just 420W, with full speed giving outstanding dry times of around 15 seconds. It’s possible to reduce the speed of the motor and turn off the heater element to customise to your unique requirements. The option to turn the heater element on and off is a real bonus as in the winter months you can add heat for comfort on the hands, but switch this off in the warmer months to save energy and costs.

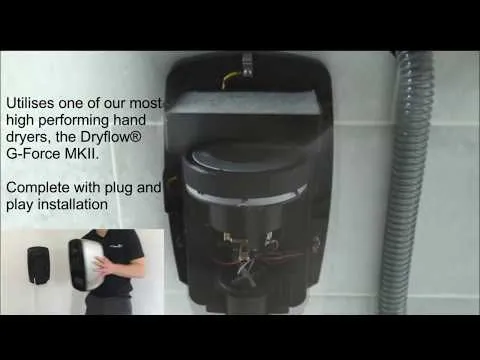

The Tri-Tap hand dryer is powered by a high-speed motor concealed behind the wall, creating more space in the washroom area. The motor includes a plug-in system phased installation which means any maintenance requirements are hassle free allowing anyone to safely remove the unit from the electrics 24hours a day, 7 days a week.
A number of optional extras include:
- High grade HEPA filter (optional)
- Ionizer “Ion Hygienic” technology (optional) - a device for cleaning and purifying the air of dust, smoke, moulds and bacteria, improving the quality of the air that is breathed in the room
- An air-freshener tablet (optional) – puts a pleasant fragrance into the washroom
Please contact us if you would like to add these optional extras to your order
Technical Description
This wall mounted hand dryer is suitable for a sink with a minimum depth of 120mm and vertical walls to avoid splash back. It requires a 50mm hole on the wall, be positioned 150mm away from the water faucet and has to be installed at least 350mm above the bottom of the basin. The base unit has a plug-in system phased installation allowing a 1st phase install of the backplate to the electrics, making installation and maintenance quick and easy. Available in a polished chrome plated brass, it is robust and has vandal resistant properties. Adjustable 420W - 1100W brushed motor produces 19,000 – 30,000 RPM, giving a 202 MPH air speed which delivers 15 second dry times. Optional heater element engagement via internal on/off switch only increases overall consumption by 400W. Sound levels can be adjusted and the base plate includes silent-blocks to cushion mechanical vibrations. The full Dryflow Tri-Tap series includes a wall mounted hand dryer, water sensor tap and automatic soap dispenser for a complete over the sink wash and dry experience.
RIBA Architect classification N13-472 hand driers/hand dryers
^Based on £0.20 per kWh. ^^Based on average 143 paper towels per £1 spent, using 1 paper towel per dry.
